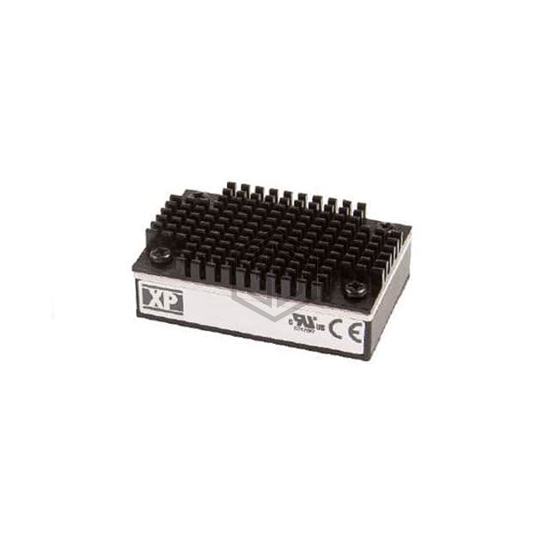

DC DC CONVERTER 5V 50W
RCQ5072S05 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 5V 50W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 35°C, package / case 8-DIP Module, current - output (max) 10A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 43V |
| Voltage - Input (Max) | 101V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 50 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 35°C |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | 62368-1 |
