AC/DC CONVERTER 24V 250W

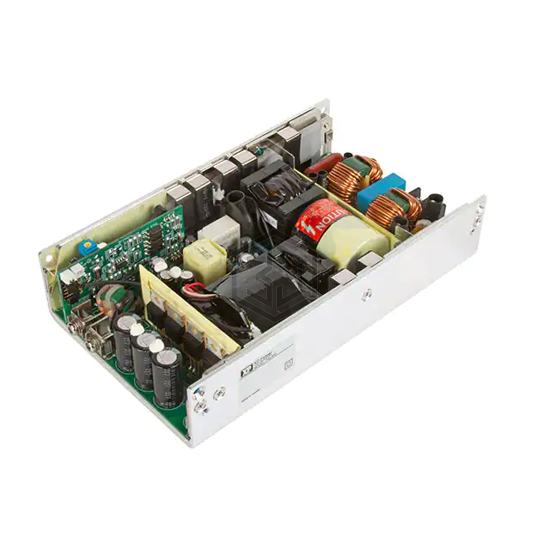

PBL500PS24B is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 24V 250W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 80 ~ 264 VAC, size / dimension 7.10" L x 4.00" W x 1.56" H (180.3mm x 101.6mm x 39.6mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 10.42 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 250W (500W Forced Air) |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 90% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | PFC, Remote On/Off, Remote Sense, Standby Output |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.10" L x 4.00" W x 1.56" H (180.3mm x 101.6mm x 39.6mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 60601-1 |
Submit your RFQ for PBL500PS24B and get a quote within 24 hours.
