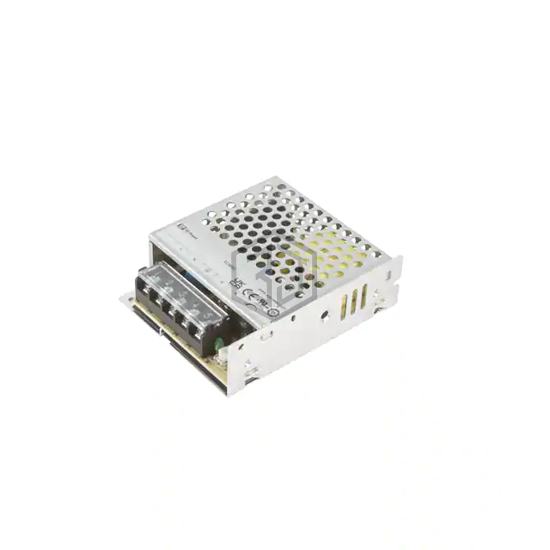

AC/DC CONVERTER 36V 52W
LCW50US36 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 36V 52W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 85 ~ 305 VAC, 120 ~ 430 VDC, size / dimension 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 120 ~ 430 VDC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.45 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 52W |
| Applications | Household Appliances, ITE (Commercial), Industrial |
| Voltage - Isolation | 4 kV |
| Efficiency | 89% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
| Approval Agency | CE, EN, UKCA, UL |
| Standard Number | 60335-1; 62368-1 |
