DC DC CONVERTER +/-15V 6W

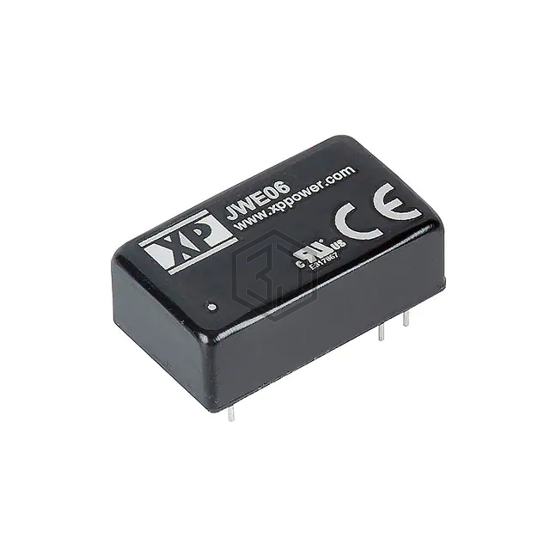

JWE0648D15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 6W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 16-DIP Module, 6 Leads, current - output (max) 200mA, 200mA.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA, 200mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | OCP, SCP |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 6 Leads |
| Size / Dimension | - |
| Supplier Device Package | 16-DIP |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for JWE0648D15 and get a quote within 24 hours.
