DC/DC CONVERTER 12V 40W

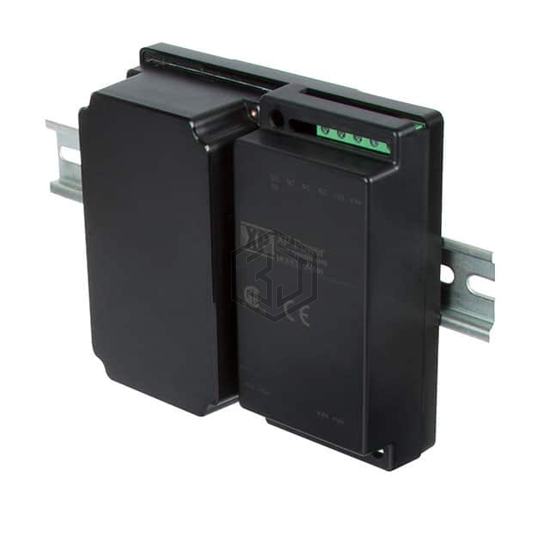

JVA401500S12-DF is a Industrial, DIN Rail Power Supplies manufactured by XP Power. DC/DC CONVERTER 12V 40W. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 3.33A, size / dimension 5.78" L x 5.43" W x 5.43" H (146.8mm x 137.9mm x 137.9mm), number of outputs 1.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 200V |
| DC Voltage - Input (Max) | 1500V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.33A |
| Power (Watts) | 40W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 72% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Remote On/Off |
| Size / Dimension | 5.78" L x 5.43" W x 5.43" H (146.8mm x 137.9mm x 137.9mm) |
| Approval Agency | UL |
| Standard Number | - |
