DC/DC CONVERTER 5V 10W

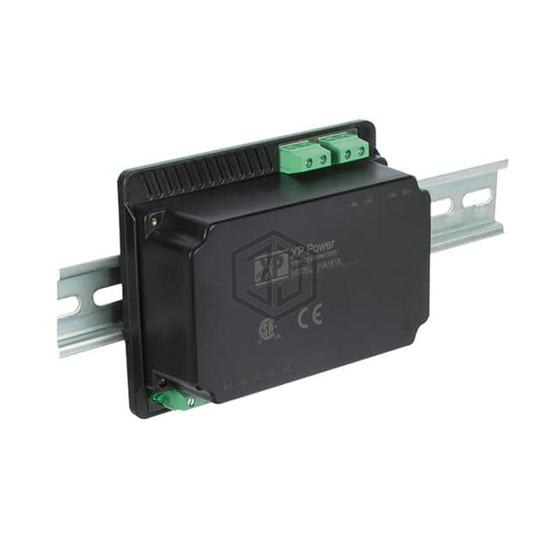

JVA151500S05-D is a Industrial, DIN Rail Power Supplies manufactured by XP Power. DC/DC CONVERTER 5V 10W. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 2A, size / dimension 5.07" L x 4.01" W x 1.92" H (128.8mm x 101.9mm x 48.8mm), number of outputs 1.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 200V |
| DC Voltage - Input (Max) | 1500V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2A |
| Power (Watts) | 10W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 72% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Remote On/Off |
| Size / Dimension | 5.07" L x 4.01" W x 1.92" H (128.8mm x 101.9mm x 48.8mm) |
| Approval Agency | UL |
| Standard Number | - |
