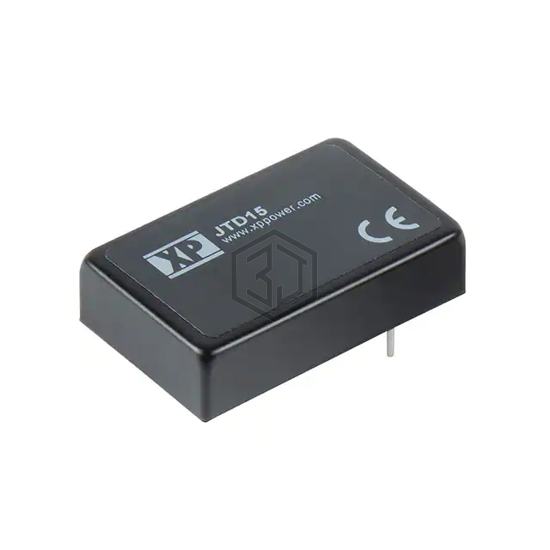

DC DC CONVERTER +/-12V 15W
JTD1548D12 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-12V 15W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (With Derating), package / case 6-DIP Module, current - output (max) 625mA, 625mA.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 625mA, 625mA |
| Power (Watts) | 15 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.60" L x 1.00" W x 0.41" H (40.6mm x 25.4mm x 10.4mm) |
| Supplier Device Package | 6-DIP |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for JTD1548D12 and get a quote within 24 hours.
