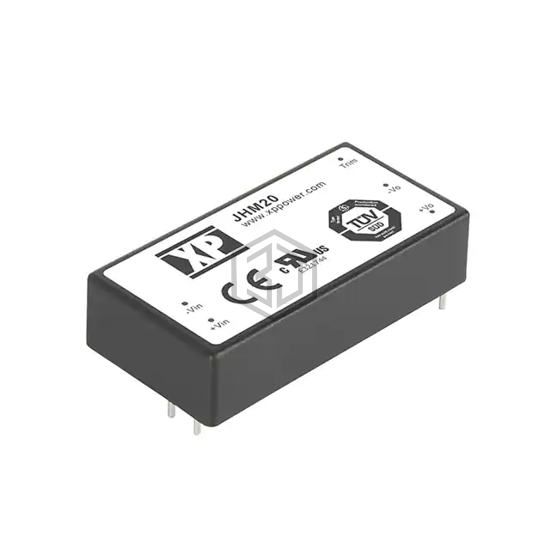

DC DC CONVERTER 15V 20W
JHM2012S15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 15V 20W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 80°C (With Derating), package / case 6-DIP Module, 5 Leads, current - output (max) 1.33A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.33A |
| Power (Watts) | 20 W |
| Voltage - Isolation | 4 kV |
| Applications | Medical |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Efficiency | 89% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module, 5 Leads |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for JHM2012S15 and get a quote within 24 hours.
