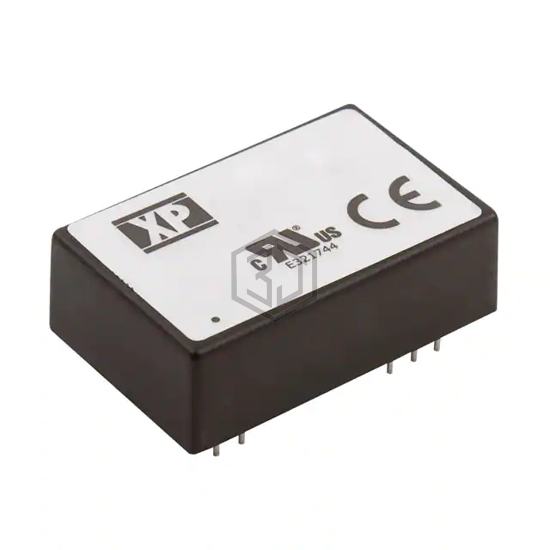

DC DC CONVERTER +/-15V 6W
JHM0624D15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 6W. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 100°C, package / case 24-DIP Module, 9 Leads, current - output (max) 200mA, 200mA.
In Stock: 107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 30V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA, 200mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | 3 kV |
| Applications | Medical |
| Features | OCP, OVP, SCP, UVLO |
| Operating Temperature | -20°C ~ 100°C |
| Efficiency | 83% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for JHM0624D15 and get a quote within 24 hours.
