DC DC CONVERTER 3.3V +/-12V 29W

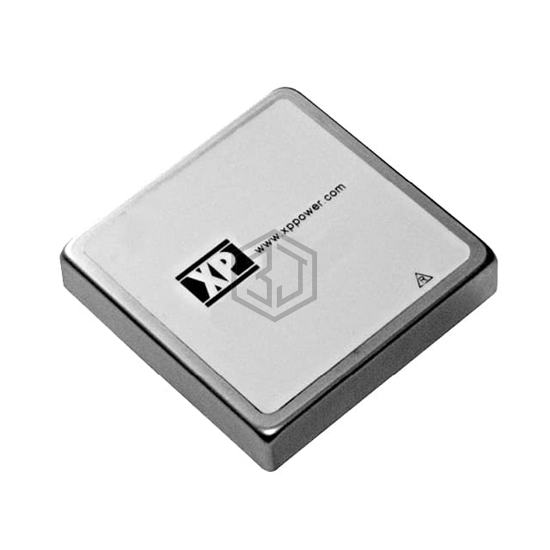

JCP4012T0312 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 3.3V +/-12V 29W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (With Derating), package / case 9-DIP Module, current - output (max) 6A, 400mA, 400mA.
In Stock: 1,985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A, 400mA, 400mA |
| Power (Watts) | 29 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module |
| Size / Dimension | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for JCP4012T0312 and get a quote within 24 hours.
