DC DC CONVERTER +/-15V 40W

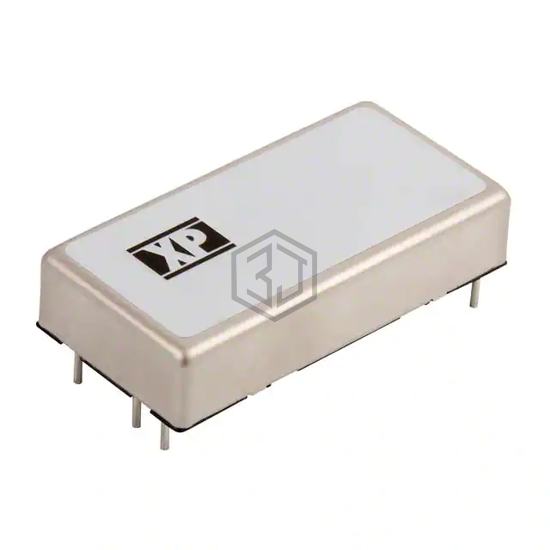

JCK4012D15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 40W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case 6-DIP Module, current - output (max) 1.33A, 1.33A.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.33A, 1.33A |
| Power (Watts) | 40 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 92% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for JCK4012D15 and get a quote within 24 hours.
