DC DC CONVERTER +/-15V 10W

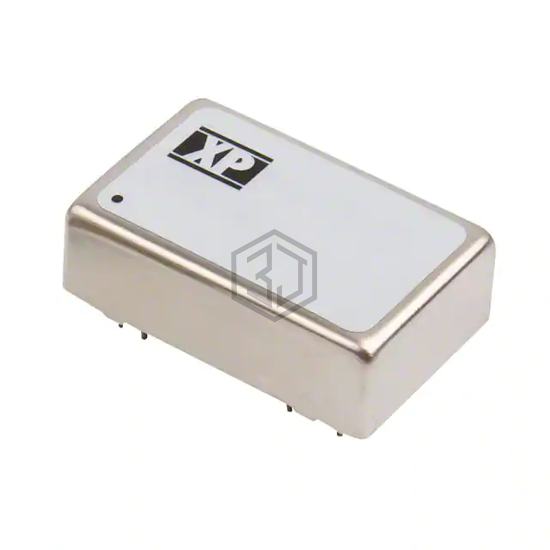

JCJ1012D15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 10W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case 11-DIP Module, 8 Leads, current - output (max) 333mA, 333mA.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 333mA, 333mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 11-DIP Module, 8 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
