DC DC CONVERTER 9V 3W

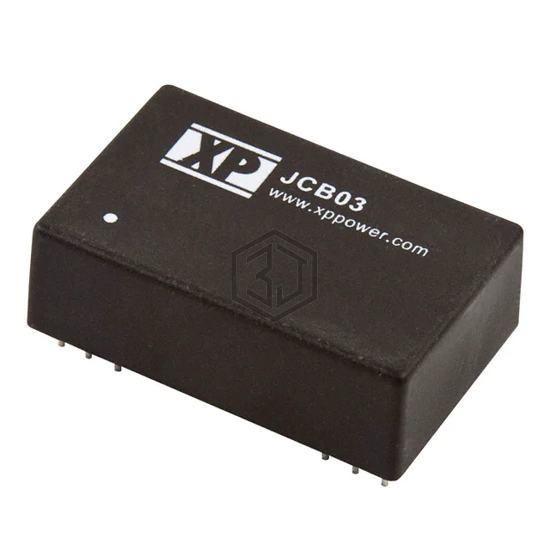

JCB0324S09 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 9V 3W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case 24-DIP Module, 14 Leads, current - output (max) 333mA.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 333mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 14 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for JCB0324S09 and get a quote within 24 hours.
