DC DC CONVERTER +/-5V 10W

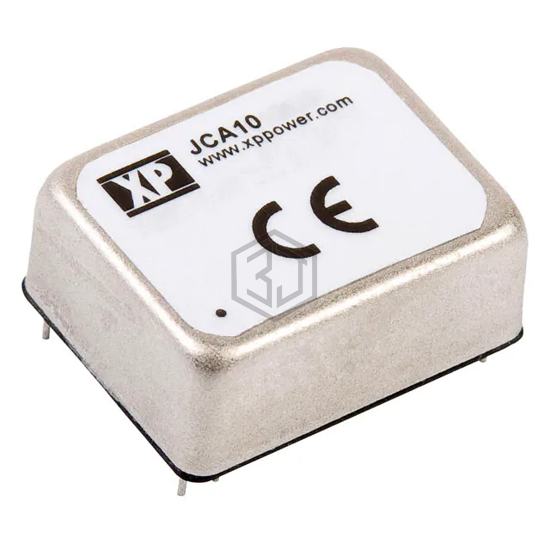

JCA1005D01 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-5V 10W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case 24-DIP Module, 8 Leads, current - output (max) 800mA, 800mA.
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 800mA, 800mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 8 Leads |
| Size / Dimension | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for JCA1005D01 and get a quote within 24 hours.
