DC-DC 3W 4:1

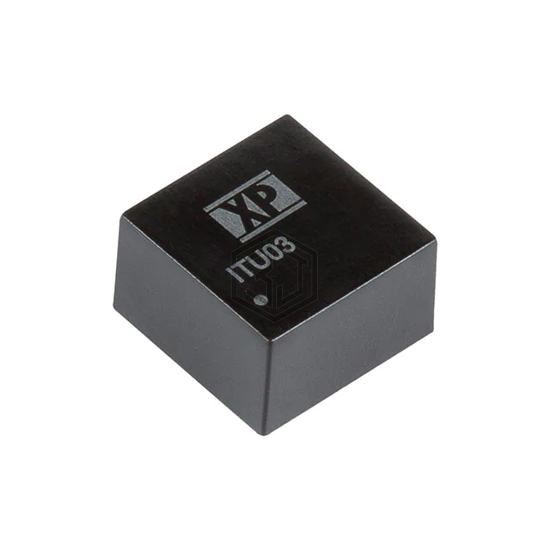

ITU0348S05 is a DC DC Converters manufactured by XP Power. DC-DC 3W 4:1. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 80°C (With Derating), package / case 8-DIP Module, 5 Leads, current - output (max) 600mA.
In Stock: 44
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 5 Leads |
| Size / Dimension | 0.55" L x 0.55" W x 0.32" H (14.0mm x 14.0mm x 8.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Floating |
| Approval Agency | - |
| Standard Number | - |
