DC-DC 3W 10% INPUT

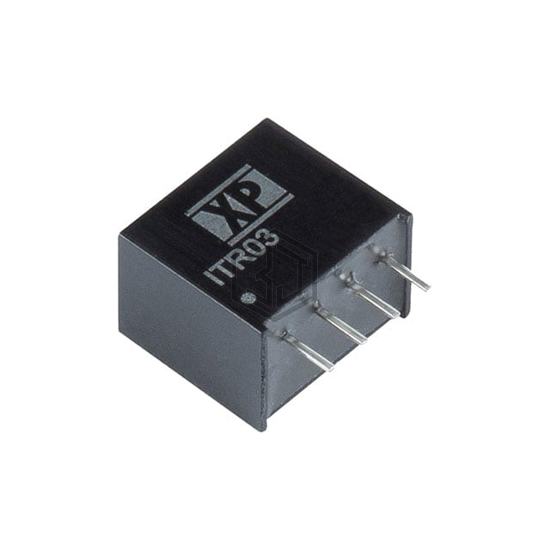

ITR0312S05 is a DC DC Converters manufactured by XP Power. DC-DC 3W 10% INPUT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (With Derating), package / case 4-SIP Module, current - output (max) 600mA.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.46" L x 0.30" W x 0.42" H (11.7mm x 7.5mm x 10.7mm) |
| Supplier Device Package | 3-SIP Module |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for ITR0312S05 and get a quote within 24 hours.
