DC-DC 3W 10% INPUT

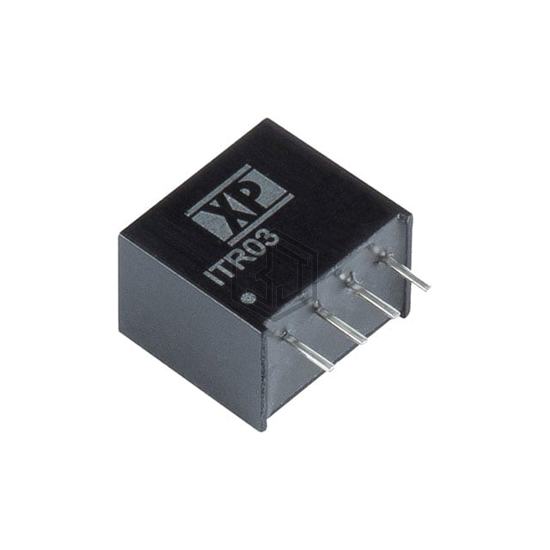

ITR0305S09 is a DC DC Converters manufactured by XP Power. DC-DC 3W 10% INPUT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (With Derating), package / case 3-SIP Module, current - output (max) 333mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 333mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.30" W x 0.42" H (11.7mm x 7.5mm x 10.7mm) |
| Supplier Device Package | 3-SIP Module |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for ITR0305S09 and get a quote within 24 hours.
