DC DC CONVERTER 5V 2W

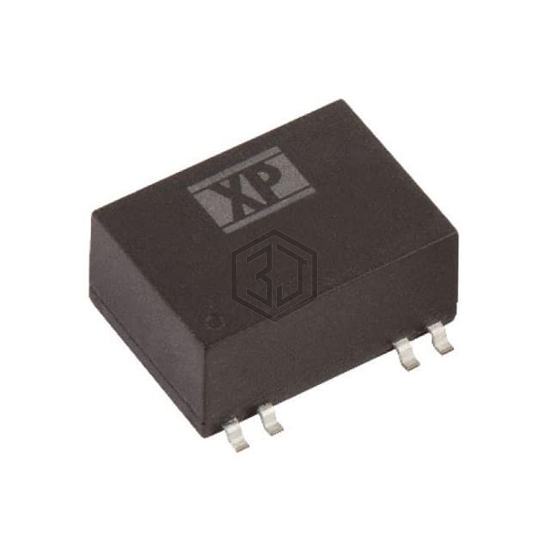

ISU0248S05-TR is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 5V 2W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 95°C (With Derating), package / case 14-SMD Module, 7 Leads, current - output (max) 400mA.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Efficiency | 78% |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module, 7 Leads |
| Size / Dimension | 0.75" L x 0.59" W x 0.33" H (19.1mm x 15.0mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UKCA, UL |
| Standard Number | 62368-1 |
