DC DC CONVERTER +/-15V 2W

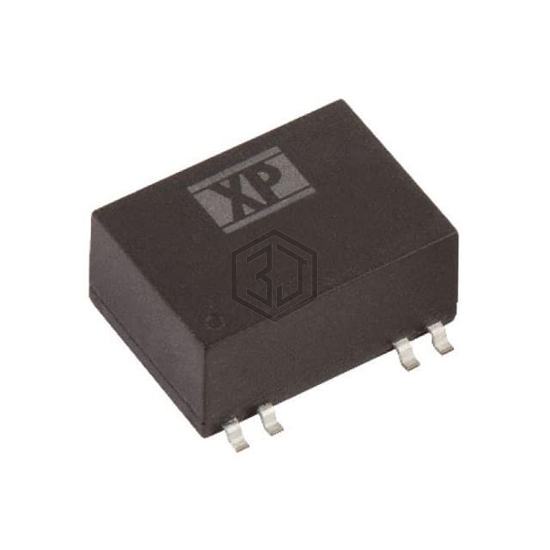

ISU0205D15-TR is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 2W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 95°C (With Derating), package / case 14-SMD Module, 7 Leads, current - output (max) 67mA, 67mA.
In Stock: 112
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 12V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA, 67mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Efficiency | 81% |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module, 7 Leads |
| Size / Dimension | 0.75" L x 0.59" W x 0.33" H (19.1mm x 15.0mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UKCA, UL |
| Standard Number | 62368-1 |
