DC DC CONVERTER +/-15V 1W

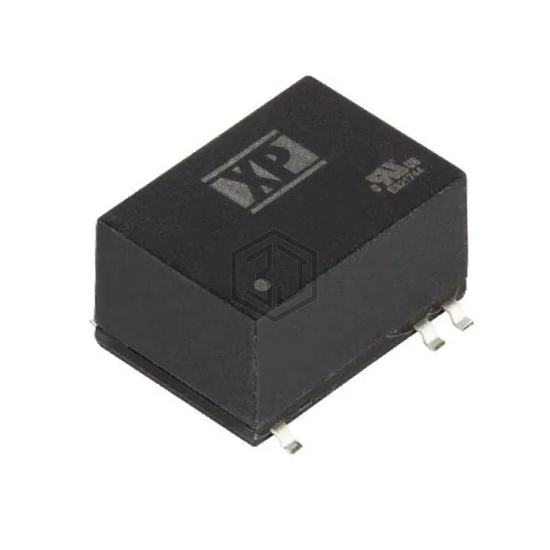

ISM0105D15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 1W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 95°C (With Derating), package / case 14-SMD Module, 6 Leads, current - output (max) 33mA, 33mA.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 33mA, 33mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 4 kV |
| Applications | Medical |
| Features | SCP |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Efficiency | 84% |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module, 6 Leads |
| Size / Dimension | 0.74" L x 0.54" W x 0.41" H (18.9mm x 13.7mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for ISM0105D15 and get a quote within 24 hours.
