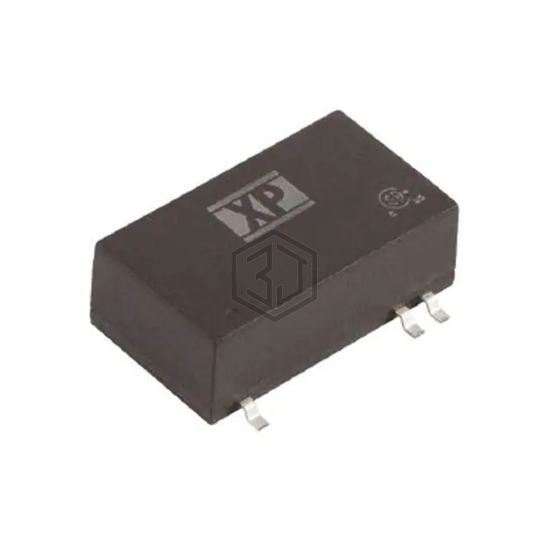

DC DC CONVERTER +/-15V 3W
ISC0348D15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 3W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case 16-SMD Module, 7 Leads, current - output (max) 100mA, 100mA.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 80% |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD Module, 7 Leads |
| Size / Dimension | 0.94" L x 0.54" W x 0.31" H (24.0mm x 13.7mm x 8.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for ISC0348D15 and get a quote within 24 hours.
