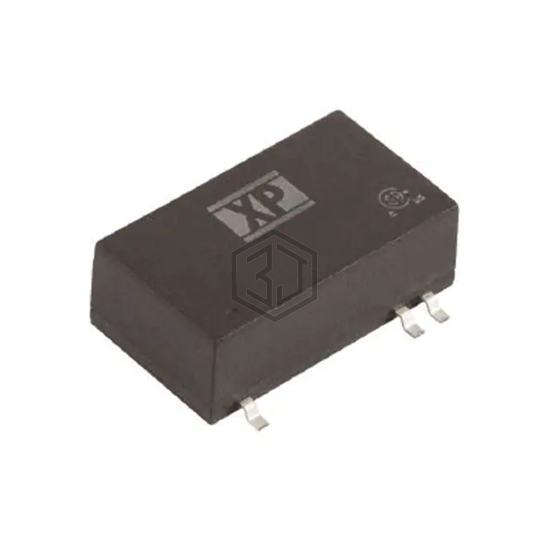

DC DC CONVERTER 12V 3W
ISC0324S12-TR is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 12V 3W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C (With Derating), package / case 16-SMD Module, 7 Leads, current - output (max) 250mA.
In Stock: 197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 80% |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD Module, 7 Leads |
| Size / Dimension | 0.94" L x 0.54" W x 0.32" H (24.0mm x 13.7mm x 8.3mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE, UKCA, UL |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for ISC0324S12-TR and get a quote within 24 hours.
