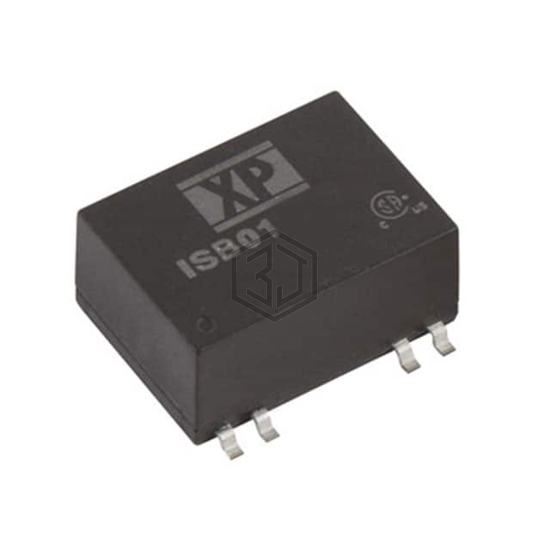

DC DC CONVERTER 5V 1W
ISB0112S05-TR is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 5V 1W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 95°C (With Derating), package / case 14-SMD Module, 7 Leads, current - output (max) 200mA.
In Stock: 245
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Efficiency | 79% |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module, 7 Leads |
| Size / Dimension | 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Floating |
| Approval Agency | CB, CE, UKCA, UL |
| Standard Number | 62368-1 |
Submit your RFQ for ISB0112S05-TR and get a quote within 24 hours.
