DC DC CONVERTER +/-9V 1W

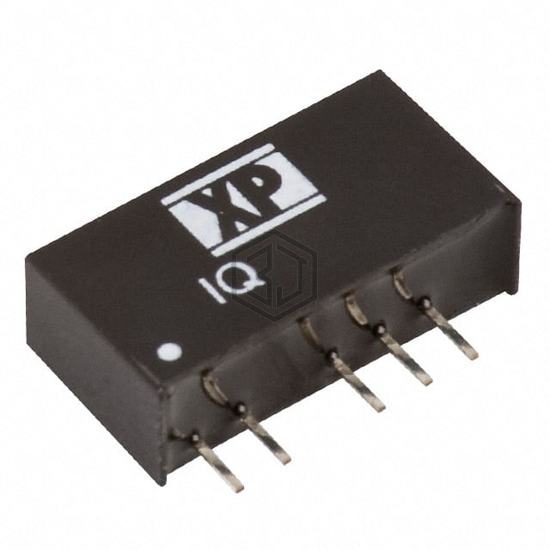

IQ0509S is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-9V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 7-SIP Module, 6 Leads, current - output (max) 55.5mA, 55.5mA.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 55.5mA, 55.5mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 86% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 6 Leads |
| Size / Dimension | 0.76" L x 0.24" W x 0.39" H (19.3mm x 6.0mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for IQ0509S and get a quote within 24 hours.
