DC DC CONVERTER 3.3V 3W

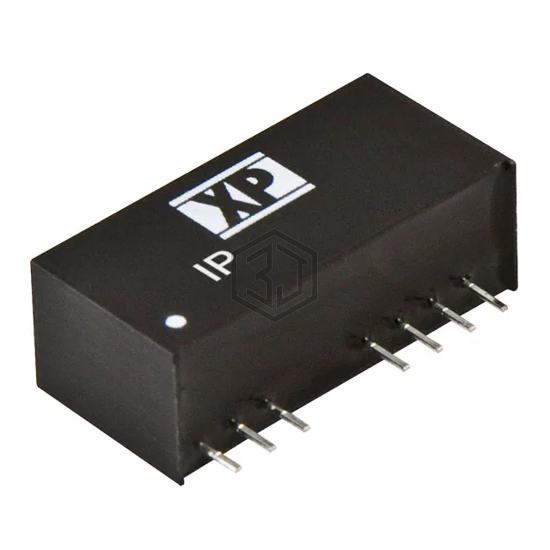

IP4803SA is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 3.3V 3W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, package / case 8-SIP Module, 7 Leads, current - output (max) 700mA.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 700mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 74% |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for IP4803SA and get a quote within 24 hours.
