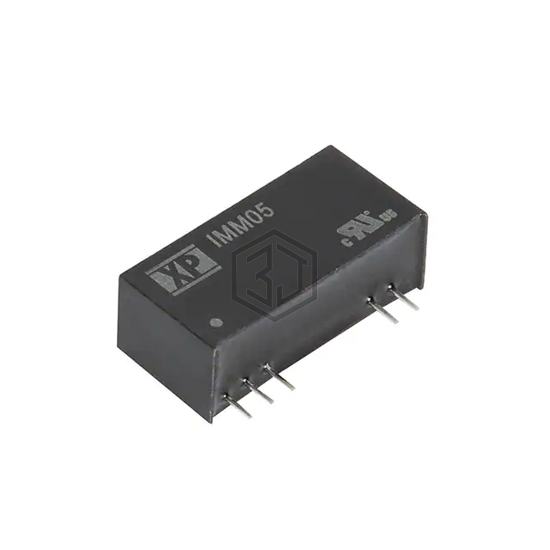

DC DC CONVERTER 15V 5W
IMM0524S15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 15V 5W. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 100°C (With Derating), package / case 9-SIP Module, 5 Leads, current - output (max) 333mA.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 333mA |
| Power (Watts) | 5 W |
| Voltage - Isolation | 1.5 kV |
| Applications | Medical |
| Features | Remote On/Off, OCP, SCP |
| Operating Temperature | -20°C ~ 100°C (With Derating) |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP Module, 5 Leads |
| Size / Dimension | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CSA, TUV, UL |
| Standard Number | - |
Submit your RFQ for IMM0524S15 and get a quote within 24 hours.
