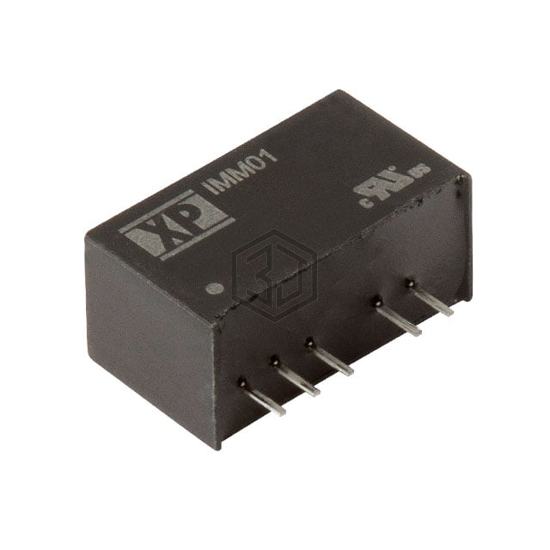

DC DC CONVERTER +/-15V 1W
IMM0112D15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 1W. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 100°C, package / case 7-SIP Module, 6 Leads, current - output (max) 33mA, 33mA.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 33mA, 33mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | Medical |
| Features | Remote On/Off, SCP |
| Operating Temperature | -20°C ~ 100°C |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 6 Leads |
| Size / Dimension | 0.77" L x 0.36" W x 0.44" H (19.5mm x 9.2mm x 11.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for IMM0112D15 and get a quote within 24 hours.
