DC DC CONVERTER 24V 250MW

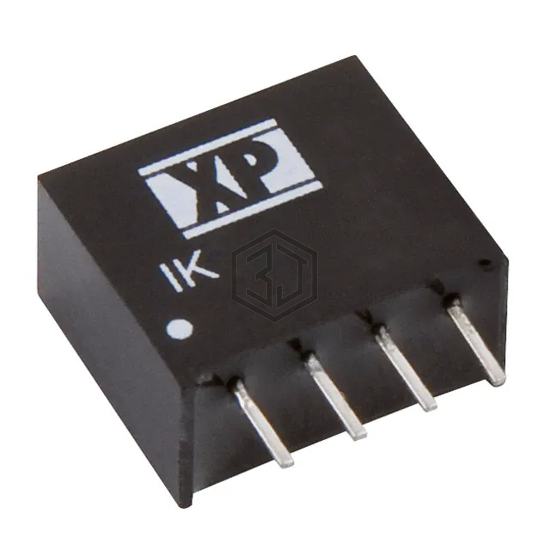

IK2424SA is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 24V 250MW. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 4-SIP Module, current - output (max) 10.4mA.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10.4mA |
| Power (Watts) | 250 mW |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 59% |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for IK2424SA and get a quote within 24 hours.
