DC DC CONVERTER +/-9V 2W

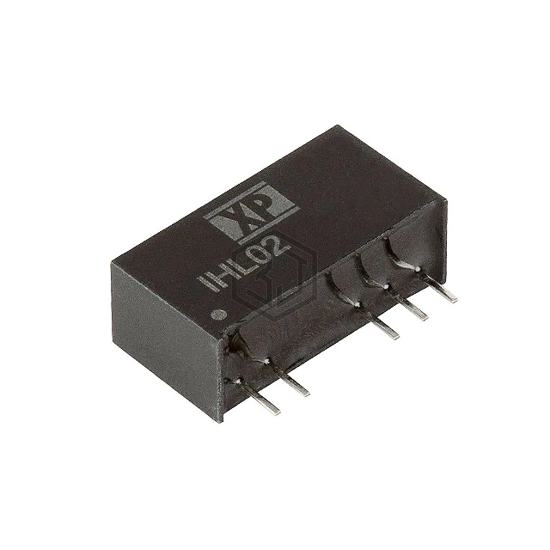

IHL0212D09 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-9V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 95°C, package / case 7-SIP Module, 5 Leads, current - output (max) 111mA, 111mA.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 111mA, 111mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 5.2 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 95°C |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for IHL0212D09 and get a quote within 24 hours.
