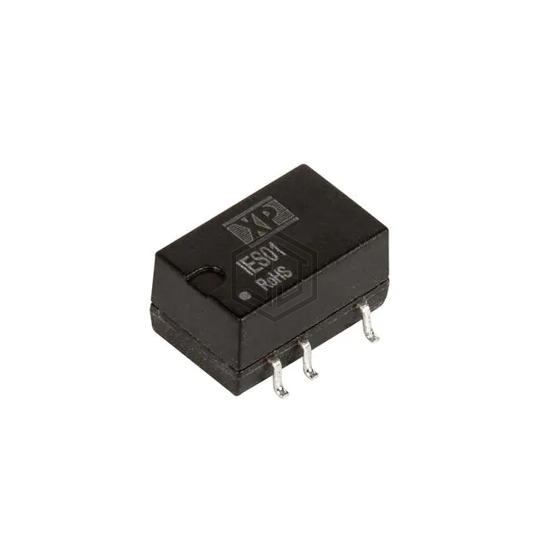

DC DC CONVERTER 9V 999MW
IES0112S09 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 9V 999MW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (With Derating), package / case 8-SMD Module, 5 Leads, current - output (max) 111mA.
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 111mA |
| Power (Watts) | 999 mW |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 83% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UKCA, UL |
| Standard Number | 62368-1 |
Submit your RFQ for IES0112S09 and get a quote within 24 hours.
