DC DC CONVERTER 5V 5W

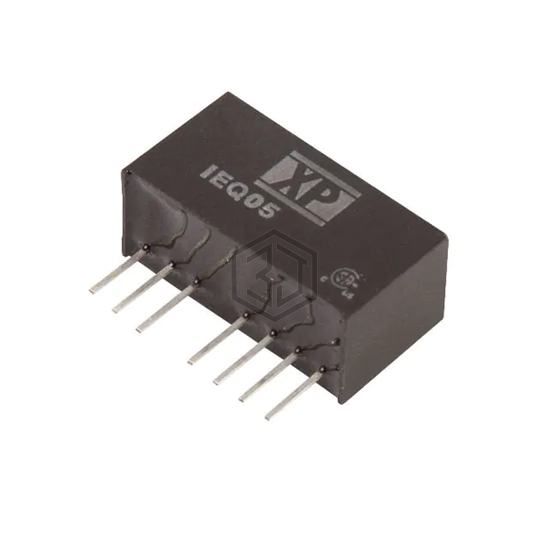

IEQ0548S05 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 5V 5W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 90°C, package / case 8-SIP Module, 7 Leads, current - output (max) 1A.
In Stock: 269
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 5 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 90°C |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm) |
| Supplier Device Package | 8-SIP |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for IEQ0548S05 and get a quote within 24 hours.
