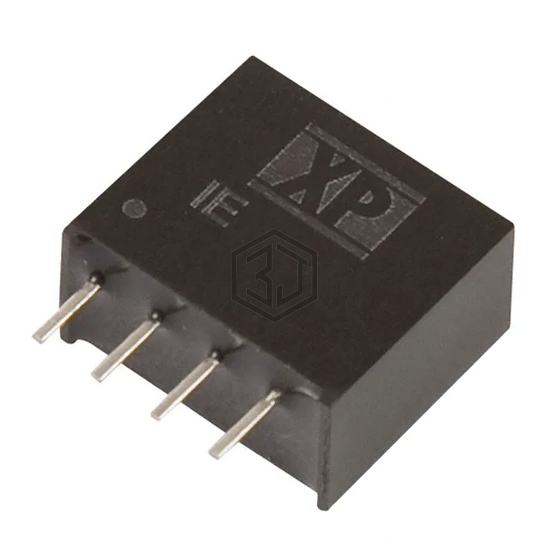

DC DC CONVERTER 3.3V 1W
IE0303S is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 3.3V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 4-SIP Module, current - output (max) 300mA.
In Stock: 154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.97V |
| Voltage - Input (Max) | 3.63V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 300mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 71% |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for IE0303S and get a quote within 24 hours.
