DC DC CONVERTER +/-15V 9W

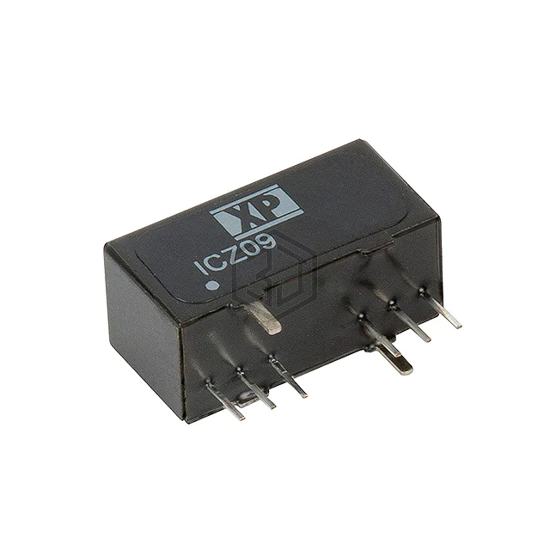

ICZ0948D15 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-15V 9W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 12-SIP Module, 6 Leads, current - output (max) 300mA, 300mA.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 300mA, 300mA |
| Power (Watts) | 9 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module, 6 Leads |
| Size / Dimension | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) |
| Supplier Device Package | 12-SIP |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for ICZ0948D15 and get a quote within 24 hours.
