DC DC CONVERTER +/-24V 1W

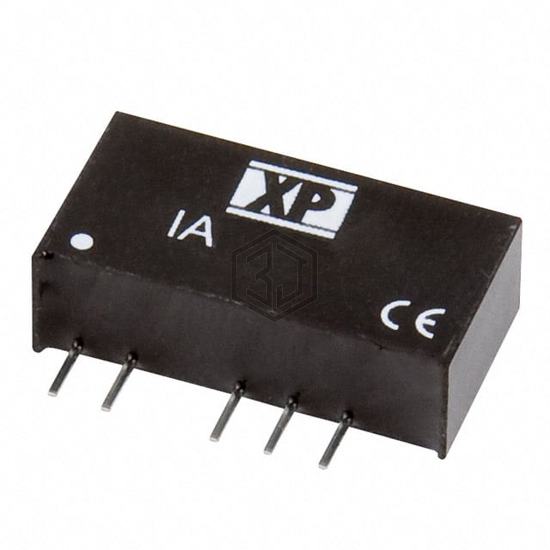

IA1224S is a DC DC Converters manufactured by XP Power. DC DC CONVERTER +/-24V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 5-SIP Module, current - output (max) 21mA.
In Stock: 130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | -24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 21mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 76% |
| Mounting Type | Through Hole |
| Package / Case | 5-SIP Module |
| Size / Dimension | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for IA1224S and get a quote within 24 hours.
