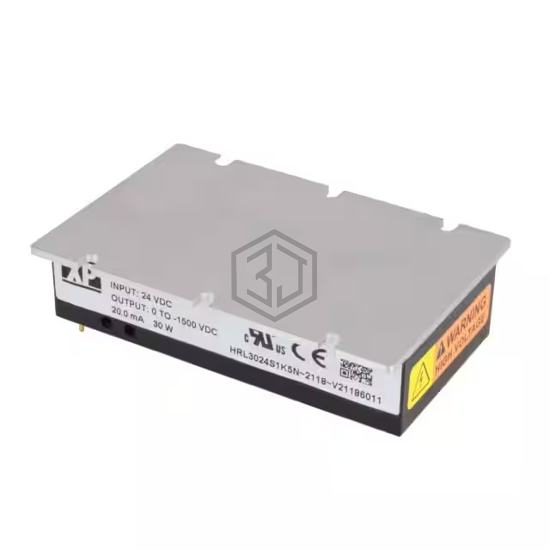

HV DC-DC 30W 1500V
HRL3024S1K5N is a DC DC Converters manufactured by XP Power. HV DC-DC 30W 1500V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, package / case 14-DIP Module, current - output (max) 20mA.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 22V |
| Voltage - Input (Max) | 30V |
| Voltage - Output 1 | -1500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20mA |
| Power (Watts) | 30 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module |
| Size / Dimension | 3.00" L x 2.00" W x 0.73" H (76.2mm x 50.8mm x 18.6mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for HRL3024S1K5N and get a quote within 24 hours.
