HV DC-DC 5W 6000V

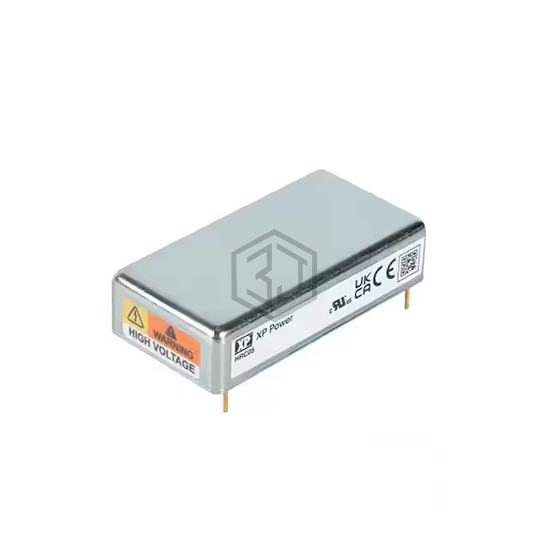

HRC0524S6K0N is a DC DC Converters manufactured by XP Power. HV DC-DC 5W 6000V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, package / case 10-DIP Module, current - output (max) 830µA.
In Stock: 9,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 22V |
| Voltage - Input (Max) | 30V |
| Voltage - Output 1 | 0 ~ -6000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 830µA |
| Power (Watts) | 5 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Laboratory |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP Module |
| Size / Dimension | 2.55" L x 1.30" W x 0.60" H (64.8mm x 33.0mm x 15.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | UL |
| Standard Number | 61010-1; 62368-1 |
