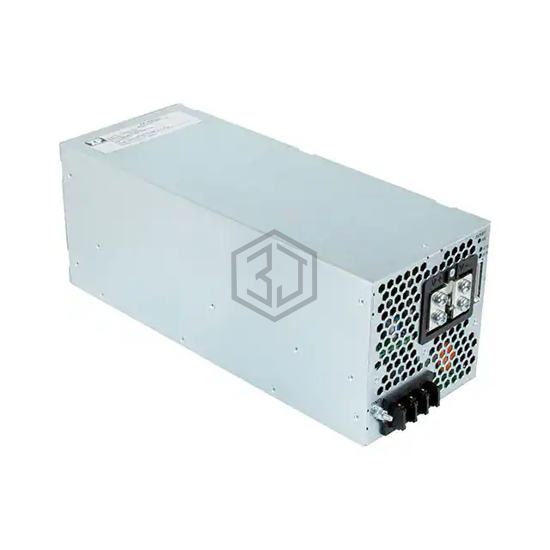

AC/DC CONVERTER 100V 5000W
HPT5K0TS100 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 100V 5000W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 180 ~ 528 VAC (3 Phase), size / dimension 13.00" L x 5.00" W x 5.00" H (330.2mm x 127.0mm x 127.0mm).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 180 ~ 528 VAC (3 Phase) |
| Voltage - Output 1 | 100V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 50 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 5000W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 93% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, I²C Interface, Load Sharing, PMBus™, Remote On/Off, Remote Sense, Standby Output |
| Mounting Type | Chassis Mount |
| Size / Dimension | 13.00" L x 5.00" W x 5.00" H (330.2mm x 127.0mm x 127.0mm) |
| Approval Agency | CB, CE, TUV, UL |
| Standard Number | 60601-1; 60950-1; 62368-1 |
Submit your RFQ for HPT5K0TS100 and get a quote within 24 hours.
