AC/DC CONVERTER 12V 1500W

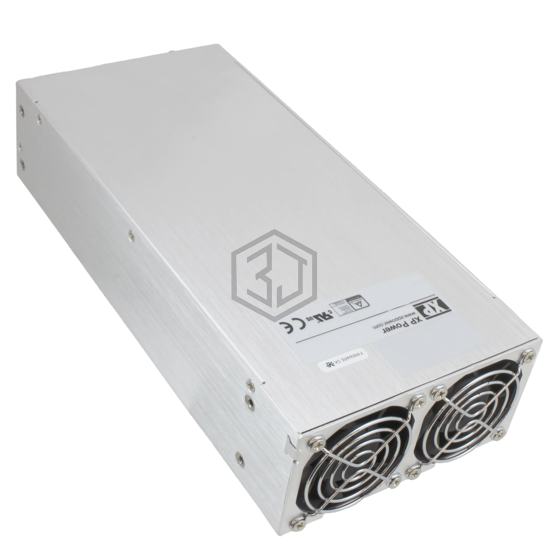

HDS1500PS12 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 12V 1500W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 60°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 125 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 1500W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 89% |
| Operating Temperature | -20°C ~ 60°C (With Derating) |
| Features | Adjustable Output, I²C™ Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 62368-1 |
