AC/DC CONVERTER 36V 86W

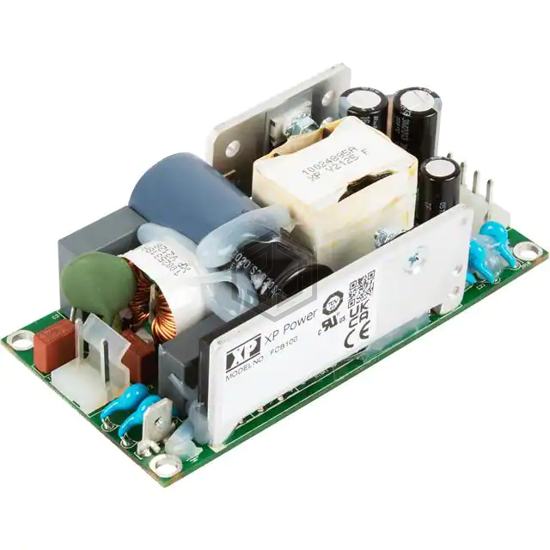

FCB100US36 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 36V 86W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 80 ~ 264 VAC, size / dimension 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm).
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.8 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 86W (101W Forced Air) |
| Applications | Household Appliances, ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 87% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
| Approval Agency | CB, CE, UKCA, UL |
| Standard Number | 60335-1; 60601-1; 60950-1; 62368-1 |
Submit your RFQ for FCB100US36 and get a quote within 24 hours.
