AC/DC CONVERTER 24V 15W

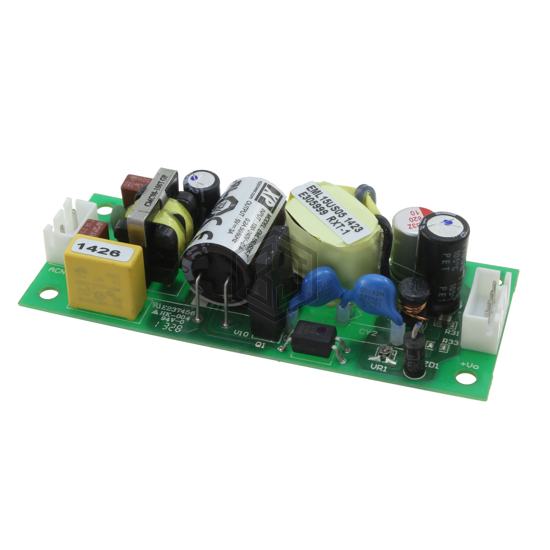

EML15US24-T is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 24V 15W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm).
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 630 mA |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 15W |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 82% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for EML15US24-T and get a quote within 24 hours.
