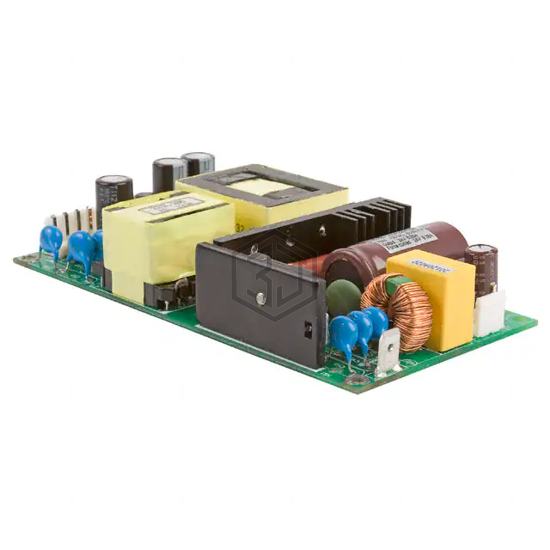

AC/DC CONVERTER 48V 150W
ECP225PS48 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 48V 150W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 5.00" L x 2.50" W x 1.00" H (127.0mm x 63.5mm x 25.4mm).
In Stock: 73
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.69 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 150W (225W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 2.50" W x 1.00" H (127.0mm x 63.5mm x 25.4mm) |
| Approval Agency | CB, CE |
| Standard Number | 62368-1 |
Submit your RFQ for ECP225PS48 and get a quote within 24 hours.
