AC/DC CONVERTER 5V +/-15V 80W

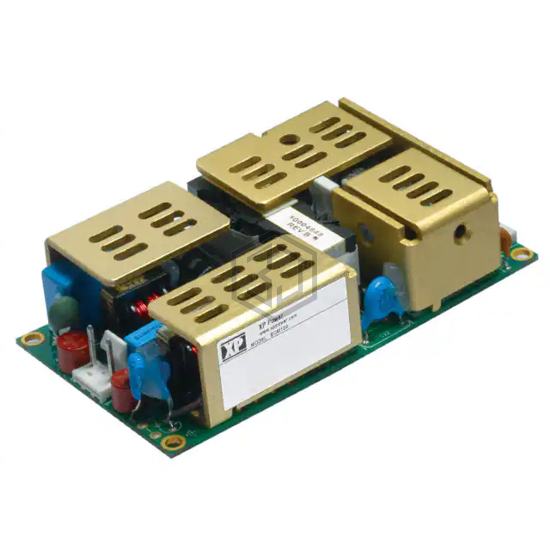

ECM100UT33 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 5V +/-15V 80W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm).
In Stock: 169
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 90 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 10 A |
| Current - Output 2 | 3 A |
| Current - Output 3 | 800 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 80W (100W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 80% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
| Approval Agency | CB, CE |
| Standard Number | 62368-1 |
Submit your RFQ for ECM100UT33 and get a quote within 24 hours.
