AC/DC CONVERTER 5V +/-15V 30W

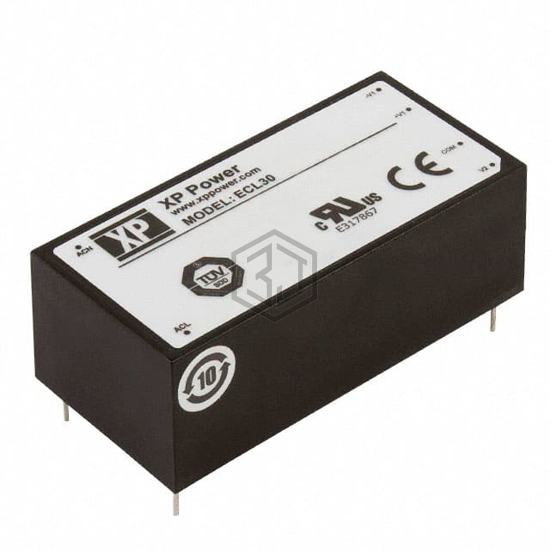

ECL30UT03-E is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 5V +/-15V 30W. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, package / case 7-DIP Module.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 3 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A, 500mA, 500mA |
| Power (Watts) | 30 W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 3.10" L x 1.50" W x 1.10" H (78.7mm x 38.1mm x 27.9mm) |
| Approval Agency | CSA, cUL, EN, IEC, UL |
| Standard Number | 62368-1 |
Submit your RFQ for ECL30UT03-E and get a quote within 24 hours.
