AC/DC CONVERTER 5V +/-12V 30W

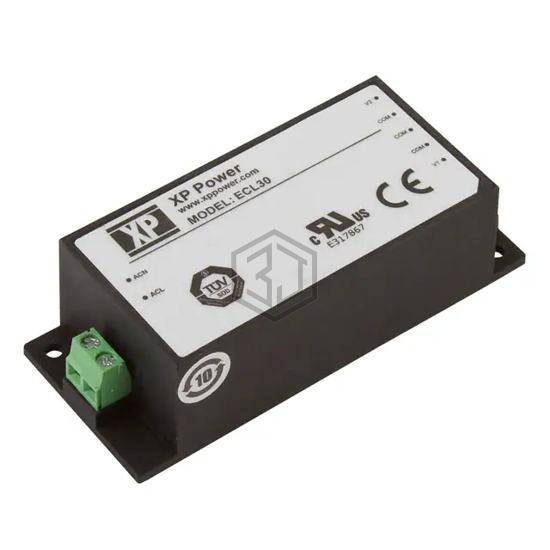

ECL30UT02-S is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 5V +/-12V 30W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 3 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3 A |
| Current - Output 2 | 630 mA |
| Current - Output 3 | 630 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 30W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 83% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
| Approval Agency | - |
| Standard Number | 62368-1 |
