AC/DC CONVERTER 5V 25W

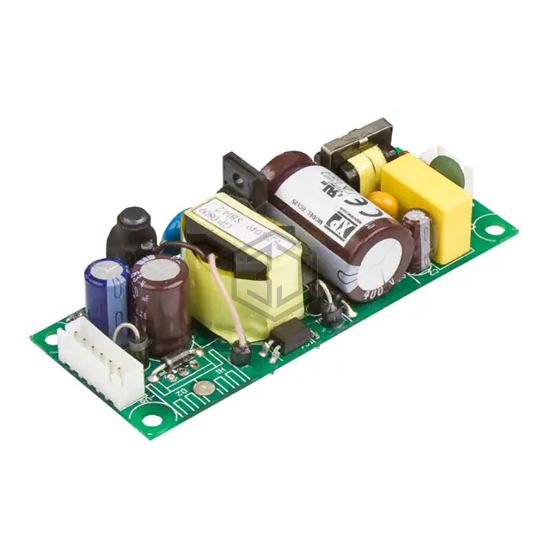

ECL25US05-T is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 5V 25W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm).
In Stock: 177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 25W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 78% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for ECL25US05-T and get a quote within 24 hours.
