AC/DC CONVERTER +/-12V 15W

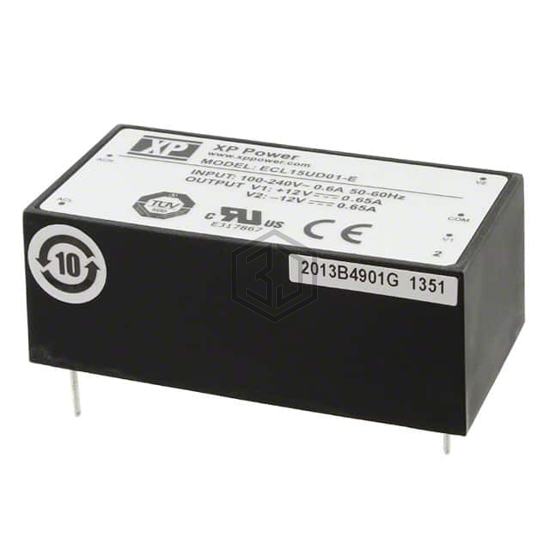

ECL15UD01-E is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER +/-12V 15W. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, package / case 5-DIP Module.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 650mA, 650mA |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.56" L x 1.31" W x 0.96" H (65.0mm x 33.3mm x 24.4mm) |
| Approval Agency | CSA, cUL, EN, IEC, UL |
| Standard Number | 62368-1 |
