AC/DC CONVERTER 36V 40W

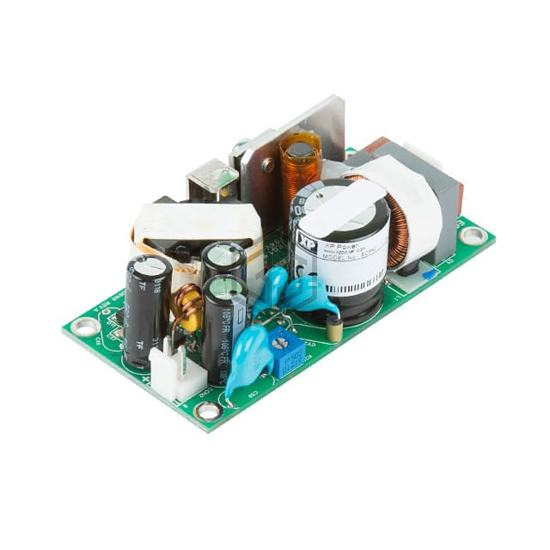

ECF40US36 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 36V 40W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 80 ~ 264 VAC, size / dimension 3.00" L x 1.50" W x 1.11" H (76.2mm x 38.1mm x 28.2mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.11 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 40W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 1.50" W x 1.11" H (76.2mm x 38.1mm x 28.2mm) |
| Approval Agency | CB, CE, TUV, UL |
| Standard Number | 62368-1 |
Submit your RFQ for ECF40US36 and get a quote within 24 hours.
