DC-DC, DIN RAIL, 4:1 INPUT

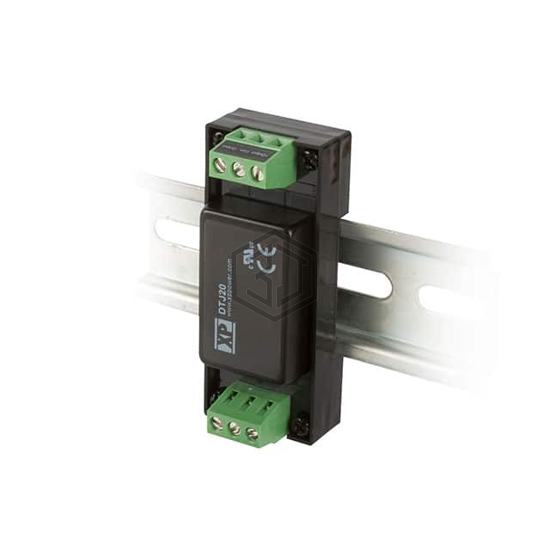

DTJ2048S12-D is a Industrial, DIN Rail Power Supplies manufactured by XP Power. DC-DC, DIN RAIL, 4:1 INPUT. Key specifications: operating temperature -40°C ~ 100°C (With Derating), current - output (max) 1.67A, size / dimension 1.24" L x 1.00" W x 3.00" H (31.4mm x 25.4mm x 76.2mm), number of outputs 1.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 18V |
| DC Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.67A |
| Power (Watts) | 20W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Features | Adjustable Output, Remote On/Off |
| Size / Dimension | 1.24" L x 1.00" W x 3.00" H (31.4mm x 25.4mm x 76.2mm) |
| Approval Agency | CB, UL |
| Standard Number | 62368-1 |
Submit your RFQ for DTJ2048S12-D and get a quote within 24 hours.
