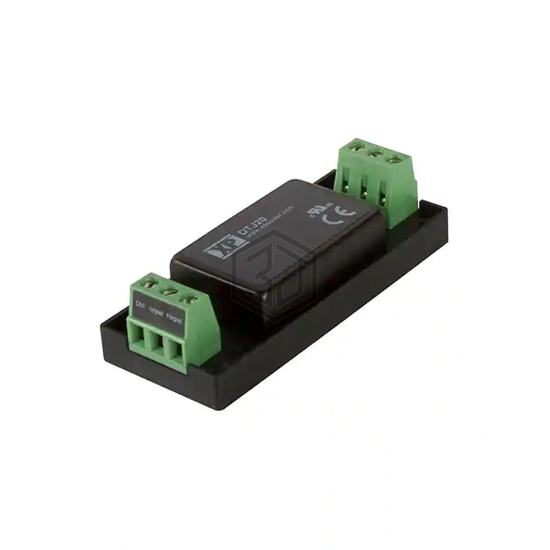

DC/DC CONVERTER +/-5V 20W
DTJ2048D05 is a DC DC Converters manufactured by XP Power. DC/DC CONVERTER +/-5V 20W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C (With Derating), current - output (max) 2A, 2A, size / dimension 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2A, 2A |
| Power (Watts) | 20W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) |
| Approval Agency | CB, UL |
| Standard Number | 62368-1 |
Submit your RFQ for DTJ2048D05 and get a quote within 24 hours.
