DC/DC CONVERTER 48V 20W

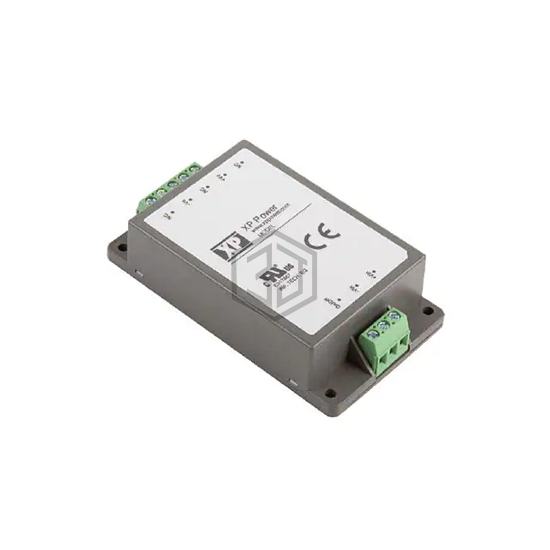

DTE2048S48 is a DC DC Converters manufactured by XP Power. DC/DC CONVERTER 48V 20W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, current - output (max) 420mA, size / dimension 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm).
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 420mA |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm) |
| Approval Agency | CB, CE, cURus |
| Standard Number | 62368-1 |
Submit your RFQ for DTE2048S48 and get a quote within 24 hours.
